Product features
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.The integration of lamp and driving IC,together with with the multi-circuit structure,achieves evenly-distributed current,low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weather ability.
5.High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6.High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Application scopes

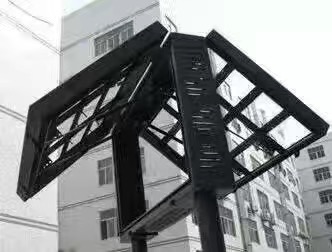

Widely applied to traffic information distribution of station,quay and airport,conference,shopping mall,brand presentation,TV station,stage show,concert, stadium display screen and so on.
Items | Parameter |

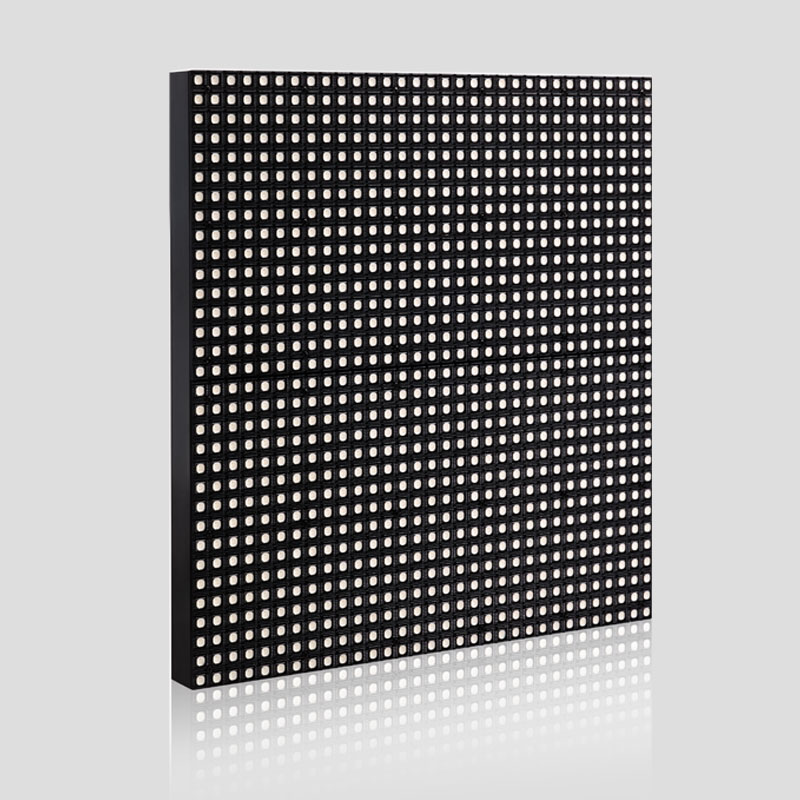

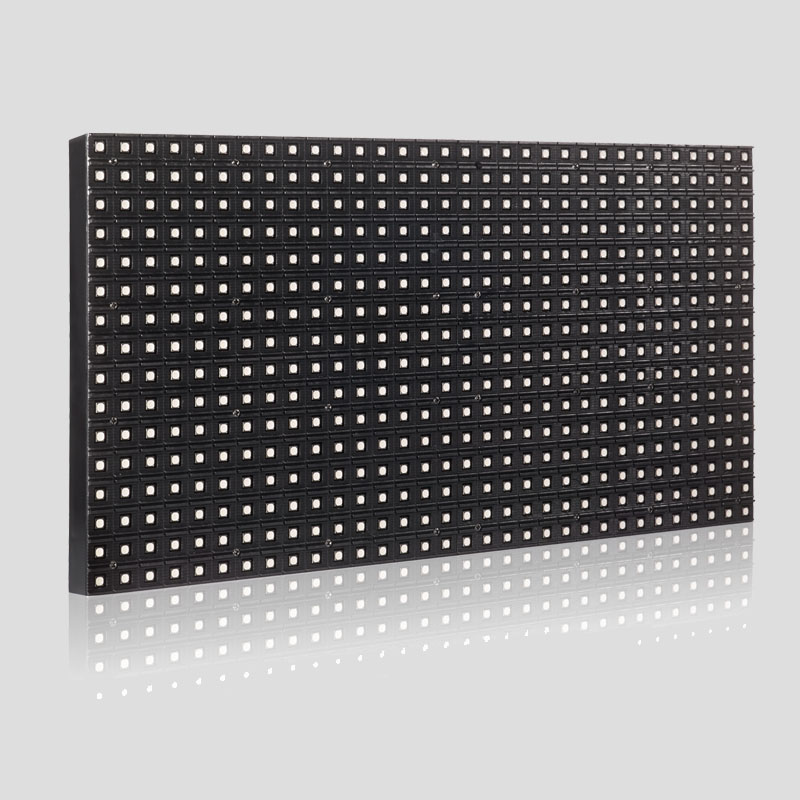

Pixel Pitch | PH6mm | PH8mm | PH10mm |
LED Encapsulation | White SMD 3535 | White SMD 3535 | White SMD 3535 |
Module Resolution(W*H) | 32*32 | 32*16 | 32*16 |
Pixel Density | 27777 Pixel/ ㎡ | 15625 Pixel/㎡ | 10000 Pixel/㎡ |
Driving Method | 1/4 Scan | 1/4 Scan | 1/2 Scan |
Refresh Frequency | ≥1920Hz （Support High refresh rate, depand on the system configuration) |
Driver IC | Special constant current IC with height refresh rate & height grey scale |
Grey Scale | 14Bit(depending on zhe system and IC configuration) |
Module Size | 192*192 | 256*128 | 320*160 |
White balance Brightness | 7000cd/㎡ | 6500cd/ ㎡ | 5500cd/㎡ |
Color Temperature | 8000K±500 （adjustable） |
Viewing Angle | Horizontal 130°Vetical 100° |
Optimal Viewing Distance | ＞6m | ＞8m | ＞10m |
Working Voltage | DC4.2V |
Max Power Consumption/per module | 30W/PCS | 30W/PCS | 30W/PCS |
Avg. Power Consumption/per module | 15W/PCS | 15W/PCS | 15W/PCS |
Lifetime | 50000hours |
Operating Temperature | –10℃ ～ 65℃ |
Net weight | 0.50Kg/pcs | 0.57Kg/pcs | 1Kg/pcs |
