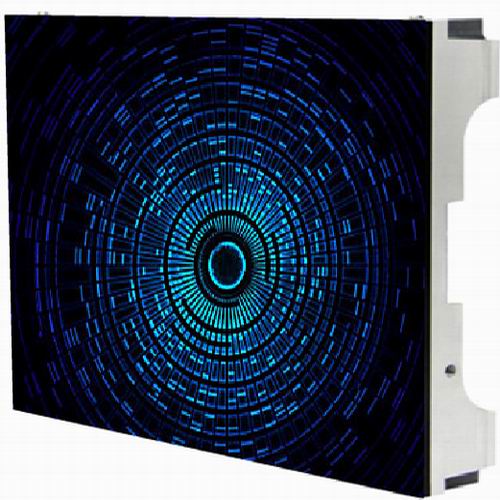

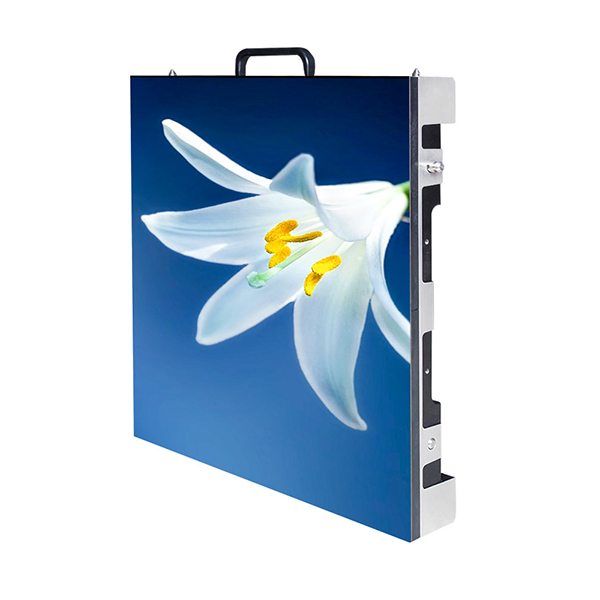

PH1.875mm Ultra HD LED Display
Product characteristics
1.Large viewing angle, high contrast ratio, high brightness(adjustable), high gray scale, high refresh rate ensure HD image and good color uniformity.
2.No noise, low power consumption, low EMI and long life span.
3.Leading technology of broadcast-quality gray level and low brightness, processing depth 16bit, refresh rate 3840Hz.
4.Wide color range, excellent color uniformity, present vivid and real pictures.
5.Die-casting aluminum design can achieve seamless connection and good heat dissipation.
6.The cabinet is thin, light, and easy to transport. Besides, it is convenient to assemble and disassemble.
7.Fan-less design, no noise.
8.Supporting multiple signal inputs
9.The box body is connected by a special clamping buckle structure, and it is convenient to assemble anddisassemble without tools.
Application area
Widely used in indoor military aerospace command, traffic security monitoring and dispatching, radio andtelevision media, video conferencing, urban planning exhibition etc.
Parameter | PH1.875 |
specification | PH1.875mm |
LED Encapsulation | SMD1010 |
Pixel Pitch | 1.875mm |
Module Resolution(W x H) | 128×128dots |
Module Size | W240×H240 |
Cabinet Module | 2×2 |
Cabinet Dimensions | 256×256mm |
Cabinet Size | W480×H480×D88.24mm |
Cabinet Proportion | 0.2304㎡ |
Protection Degree | IP30 |
Cabinet Weight | 4.3kg |
Cabinet Material | Die-casting Aluminum |
Cabinet flatness | ≤0.1 |
Single Spot Luminescent Correction | √ |
Single Spot Color Correction | √ |
White Balance Brightness | 50～800 |
Color Temperature | 3000~9500K |
Viewing Angle(Horizontal) | 160° |
Viewing Angle(Vertical) | 160° |
Luminescence Point Degree of Deviation | ≤2.5% |
Brightness Uniformity | ≥98% |
Chrome Uniformity | ±0.003Cx,CY |
Contrast Ratio | 5000:1 |
Input Power(Max) | 100w |
Input Power(Typical) | 30w |
Power Parameter | AC100～240V（47～63Hz） |
Drive Type | 1/24 scan Constant Current |
Video Frame Rate | 50/60 |
Refresh Rate | 1920~3840Hz |
Life Span | 100000hrs |
Working Temperature | 0～+45℃ |
Storage Temperature | -10～+55℃ |
Working Humidity | 10～90% |
Storage Humidity | 10～90% |
